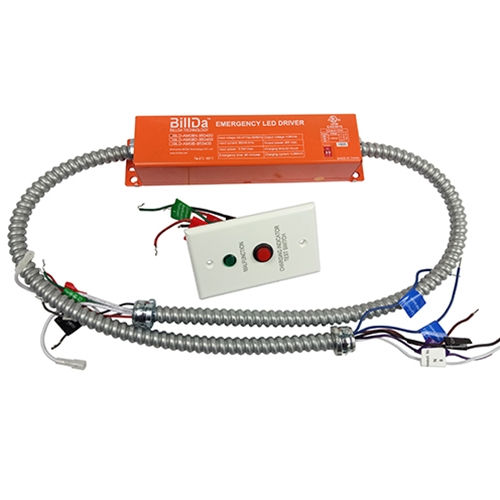

20W Emergency LED Battery Backup Driver

Item#61403

• UL Listed: For field or factory installation
• Universal Input Voltage: 100-277Vac, 50/60HZ
• AC Input Current: 100mA max
• AC Input Power Rating: 5.5W max
• Output Current and Voltage: 416-800mA  25V-48V  (Class 2)
• Output Power: 20W
• Illumination Time: 90 Minutes
• Test Switch Charging Indicator Light: Low Voltage, Illuminated Test Switch
• Battery: High-Temperature, Maintenance-Free, Ni-MH battery, 5 year Life Expectancy
• Battery Charging Current: 250mA
• Recharge Time: 24Hours
• Temperature Rating Ambient: 0°C to + 50°C (32°FF to 122°F)
• Dimensions: 15” x 2.17” x 1.3” 382mm x 55mm x 32mm   /   17.7”( 450mm) Flexible Conduit
• Weight: 3.2 lbs (1.45kg)

SPEC SHEET
